Medical Infrared Imaging Equipment
Please scroll down this page to see our Medical Infrared Imaging Camera range. All our cameras are 640×480 resolution wth a specificity of less than 50mk. If you have any questions please don’t hesitate to call us on 033 3121 6767 or email: [email protected]
T-Cam 160 P
Handheld Thermal Camera with Temperature Measurement
- The ICI T-Cam 160 P is a must-have tool for any Contractor, Electrician, or Food Services Inspectors.
- Maintain critical electrical and building infrastructure as well as cold storage and food service equipment.
- Keep engines running within normal temperatures.
- The handheld thermal imager has a 160 x 120 resolution infrared camera with a 3.5” Color LCD,
- 320 x 240 capacitive touchscreen.
- The 60 seconds of voice recording and text annotation on images is an invaluable feature when working in the field.
Features
- ICI Dual Vision – IR and Visible
- Auto Hot / Cold Spot Markers
- Dual Temperature Range
- Touchscreen Display
- 2 Lines, 3 Area Boxes, 3 Spots
- Voice / Text annotation
- Visible Light Digital Camera
- LED Flashlight
- Thumbnail View
- Image Rotation
- Software CD-ROM
Specifications
- Detector Array: Microbolometer
- Pixel Resolution: 160 x 120
- Spectral Band: 8 μm – 14 μm
- NETD Sensitivity: < 0.08°C at 30°C
- Accuracy: +/- 2°C
- FOV: 29.8° x 22.6°
- Focal Length: 7.5 mm
- Minimum Focal Distance: 0.2 m
- Frame Rate: 50 Hz P-Series
- Dynamic Range: 14-bit
- Temperature Range:
-20°C to 150°C OR 0°C to 400°C - Operation Range: -20°C to 50°C
- Storage Range: -40°C to 70°C
- Display: Capacitive Touchscreen
3.5” Color LCD, 320 x 240 - Digital Camera: 640 x 480
- Focus: Manual
- Zoom: 1x – 20x continuous, digital zoom
- Voice Annotation: 60 Seconds/image
- Text Annotation: 60 Seconds/image
- Video Format: MP4, > 60 minutes
640 x 480 @ 30 fps - Image Format: JPG, > 1,000 images
- Image Polarity: White Hot, Black Hot,
Iron, Iron Invert, Rainbow, Feather - Data Transfer: USB-mini 2.0
- Memory Card: MicroSD Card up to 4 GB
- Battery: Lithium Polymer, rechargeable
- Operation Time: 4.5 Hours
- External Input: DC 9 V to 12 V
- Interface: USB-mini, Audio, MicroSD
Composite Video (PAL and NTSC) - Drop Test: 2 m
- 25 G Shock / 2 G Vibration
- Environment: IP65
- Humidity: 10%~90%
- Dimensions (with battery): 243 x 103 x 160 mm
(H x W x D +/- .5 mm) - Weight (with battery): 500 g (17 oz)
- Languages: Multinational
- Pixel Operability: > 99%
- Built in Shutter
- Attached Camera Lens Cap
- Earphone Jack
Options and Accessories
- 11 mm = 20.6° x 15.5°
- 22 mm = 10.4° x 7.8°
- 33 mm = 6.9° x 5.2°
- 2x Telephoto Optic
- 2x Wide Angle Optic
- Hard transport case
- Sun visor (Optional)
- Tripod base
- AC charger / power supply
- Battery Charger
- Camera lens cap
- Software CD-ROM
- Hand-strap
- Wifi (Optional)
- Bluetooth (Optional)
TyTron C-500 IR
Standard 50mm camera lens
Detector: 640 x 480 VOx Focal Plane Array
True 640×480 resolution providing 307,200 pixels
Spectral Band: 8-12 microns
Frame Rate: 30 Hz
Spatial Resolution: 0.50 mrad
Sensitivity: less than 50 mK average
Computer Interface: Digital (Ethernet)
Focusing Distance: 12 inches to 15 feet
Software Controlled Electronic Focus
Heavy duty machined aluminum camera body for superior thermal stability
Narrow temperature range specifically designed for human tissue imaging
1 year warranty
Accurate on-screen temperature differentiation (Delta-T)
Detector: 640 x 480 VOx Focal Plane Array
True 640×480 resolution providing 307,200 pixels
Spectral Band: 8-12 microns
Frame Rate: 30 Hz
Spatial Resolution: 0.50 mrad
Sensitivity: less than 50 mK average
Computer Interface: Digital (Ethernet)
Focusing Distance: 12 inches to 15 feet
Software Controlled Electronic Focus
Heavy duty machined aluminum camera body for superior thermal stability
Narrow temperature range specifically designed for human tissue imaging
1 year warranty
Accurate on-screen temperature differentiation (Delta-T)
SPECTRON IR – Basic System

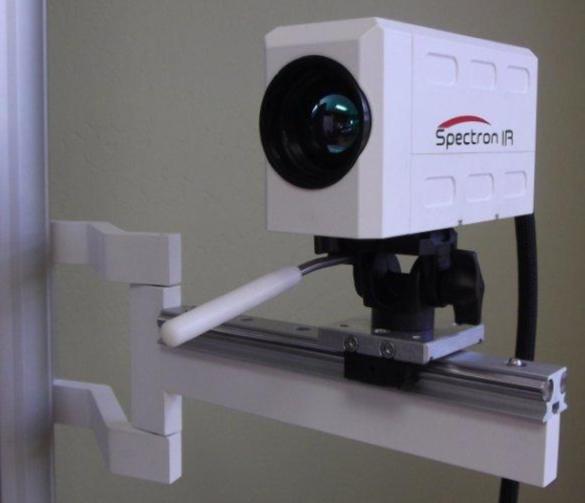

Dedicated medical 640×480 resolution infrared camera
Spectron IR professional medical software
Professional, full analytical software features
Dual pole design provides independent IR camera and computer movement
Height adjustable work surface for seated or standing operation
Collapsible stand featuring simple, quick and easy setup
Pivoting camera arm
Manual squeeze clamps accommodate image acquisition
Dedicated and integrated laptop
Ideal for all offices including mobile
Sturdy base
1 year warranty
1 year free technical support included
Spectron IR professional medical software
Professional, full analytical software features
Dual pole design provides independent IR camera and computer movement
Height adjustable work surface for seated or standing operation
Collapsible stand featuring simple, quick and easy setup
Pivoting camera arm
Manual squeeze clamps accommodate image acquisition
Dedicated and integrated laptop
Ideal for all offices including mobile
Sturdy base
1 year warranty
1 year free technical support included
SPECTRON IR – Medical Imaging Workstation System
Dedicated medical 640×480 resolution infrared camera
Spectron IR professional medical software
Professional, full analytical software features
Spectron IR U.S. patented Imaging Workstation
Medical grade, fully self contained system
Large 4 wheel base with locking castors
Simple, automated, remote controlled camera height adjustment decreases imaging times by nearly 50%
Height adjustable work surface for seated or standing operation
Pivoting camera arm
Pan and tilt camera arm
Dedicated and integrated computer
Streamlined imaging process
1 year warranty
1 year free technical support included
Designed for ease-of-use in hospital or clinical environment
Spectron IR professional medical software
Professional, full analytical software features
Spectron IR U.S. patented Imaging Workstation
Medical grade, fully self contained system
Large 4 wheel base with locking castors
Simple, automated, remote controlled camera height adjustment decreases imaging times by nearly 50%
Height adjustable work surface for seated or standing operation
Pivoting camera arm
Pan and tilt camera arm
Dedicated and integrated computer
Streamlined imaging process
1 year warranty
1 year free technical support included
Designed for ease-of-use in hospital or clinical environment

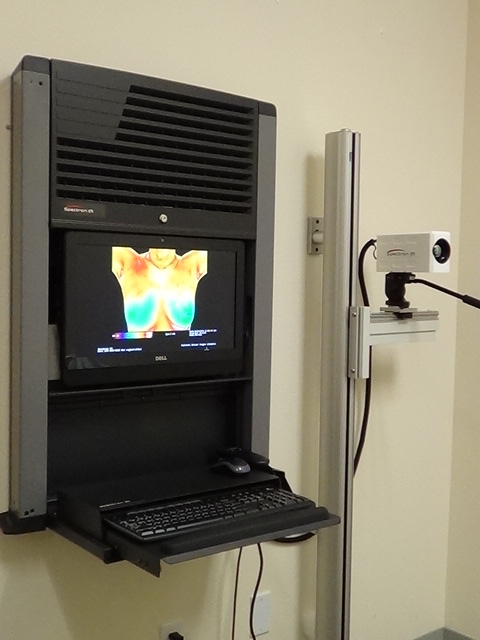

SPECTRON IR – Medical Wall Mounted System
Dedicated medical 640×480 resolution infrared camera
Spectron IR professional medical software
Professional, full analytical software features
Spectron IR Wall Mount
Space saving design
Fully self contained system
Medical grade
Simple, automated, remote controlled camera height adjustment decreases imaging times by nearly 50%
Locking keyboard
Slim 4” depth design
Height adjustable work surface for seated or standing operation
Pivoting camera arm
Pan and tilt camera arm
Dedicated and integrated computer
Streamlined imaging process
Simple installation
1 year warranty
1 year free technical support included
Designed for ease-of-use in hospital or clinical environment
Spectron IR professional medical software
Professional, full analytical software features
Spectron IR Wall Mount
Space saving design
Fully self contained system
Medical grade
Simple, automated, remote controlled camera height adjustment decreases imaging times by nearly 50%
Locking keyboard
Slim 4” depth design
Height adjustable work surface for seated or standing operation
Pivoting camera arm
Pan and tilt camera arm
Dedicated and integrated computer
Streamlined imaging process
Simple installation
1 year warranty
1 year free technical support included
Designed for ease-of-use in hospital or clinical environment
CPU
Integrated computer with software installed
Windows operating system
WiFi enabled
Wireless mouse
Wireless keyboard
CAT 6 Ethernet Cable
Windows operating system
WiFi enabled
Wireless mouse
Wireless keyboard
CAT 6 Ethernet Cable
Software
Spectron IR professional medical software
Full analytical features
Isolate temperatures for comparison
Temperature area comparisons
Temperature markers
Simple keystroke commands
Compare asymmetrical temperature values
Multiple format viewing
Simple pre-loaded and customized imaging sequences
Customized color options for temperature values
Full analytical features
Isolate temperatures for comparison
Temperature area comparisons
Temperature markers
Simple keystroke commands
Compare asymmetrical temperature values
Multiple format viewing
Simple pre-loaded and customized imaging sequences
Customized color options for temperature values
FDA Indications for Use 510(k) K032471: Intended for adjunctive diagnostic screening for the detection of breast cancer and other uses such as: peripheral vascular disease, neuromusculoskeletal disorders, extracranial cerebral facial vascular disease, thyroid gland abnormalities, and various other neoplastic, metabolic, and inflammatory conditions.
MOBILE PORTABLE UNITS AND ENTRY LEVEL SOLUTIONS AVAILABLE
FDA INDICATIONS
Spectron IR Medical Infrared Imaging System
FDA 510(k) Indications for Use
FDA 510(k) #KO32471
Indications for use: The Spectron IR Clinical Infrared Imaging System is intended for adjunctive diagnostic screening for the detection of breast cancer and other uses such as: peripheral vascular disease, neuromusculoskeletal disorders, extracranial cerebral and facial vascular disease, thyroid gland abnormalities, and various other neoplastic, metabolic and inflammatory conditions.
